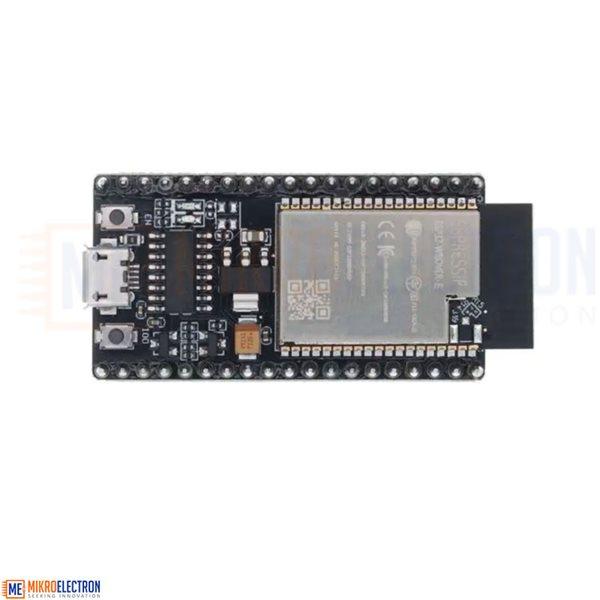

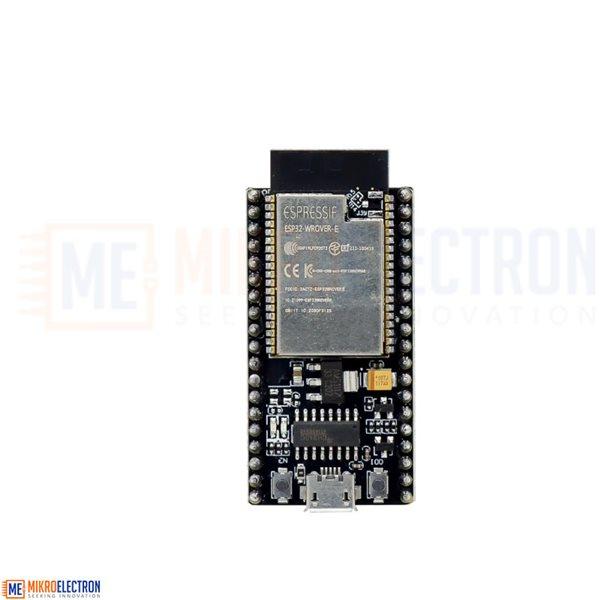

Description:

The module has goldpin connector (2.54 mm pitch) and microUSB connector. For additional communication we use integrated buttons and LEDs on the board.

Interfaces: GPIO, I2C, I2S, SPI, UART, WiFi

Supply voltage: 3.3 V to 5 V

Minimum supply current: 500 mA

Dual Core Tensilica LX6 240 MHz microcontroller

520 KB SRAM

Flash memory: 4 MB

PSRAM: 8 MB

Built-in WiFi 802.11BGN chip

WiFi Security: WEP, WPA/WPA2, PSK/Enterprise, AES / SHA2 / Elliptical Curve Cryptography / RSA-4096

Built-in Bluetooth BLE module

Bluetooth standard: Bluetooth v4.2 / Bluetooth BLE

Integrated Hall sensor and touch screen interface

32 GPIO pinouts including:

3x UART

3x SPI

2x I2C (2x I2S)

12 channel ADC

2-channel DAC

PWM outputs

SD card interface

Bandwidth: 2.4 GHz to 2.5 GHz

Operating temperature: from -40 °C to +65 °C

Type of antenna: Built-in PCB

Connector: micro USB

Power supply:

micro USB port (default)

pins 5V and GND

3.3 V leads and GND

Dimensions: 53.5mm x25mm

Kit include:

1XESP 32
